Running a comparison

A comparison is a job, not a function call. It runs in its own process, reports where it has got to, stops when you tell it to, and cannot take the window down with it.

Click to enlarge

Where the work happens#

Comparisons are CPU-bound — a line diff over a large pair, a pixel loop, a recursive folder walk — and the window must not freeze while one runs. So the engines run in a separate utility process:

• It is a plain Node process. It has no Electron APIs and no DOM, and it reads any input that was too large to travel with the request. Engines never import fs themselves — filesystem access is injected into them, which is also what lets one engine run somewhere else entirely.
• It is spawned on your first comparison and reused afterwards, so the second comparison does not pay the startup cost.
• If it hangs or dies, it can be killed without taking the app with it.

The path a comparison takes:

One job at a time#

TwinScope compares two things, so it runs one comparison. A second request supersedes the first rather than queueing behind it.

The superseded job is not torn down mid-flight, so its progress events keep arriving for a moment. They are discarded: every event carries the job id it belongs to, and an event from a job that is no longer the current one is dropped rather than allowed to clobber the new job's state. You never see a percentage from a comparison you replaced, or a result that belongs to the previous pair.

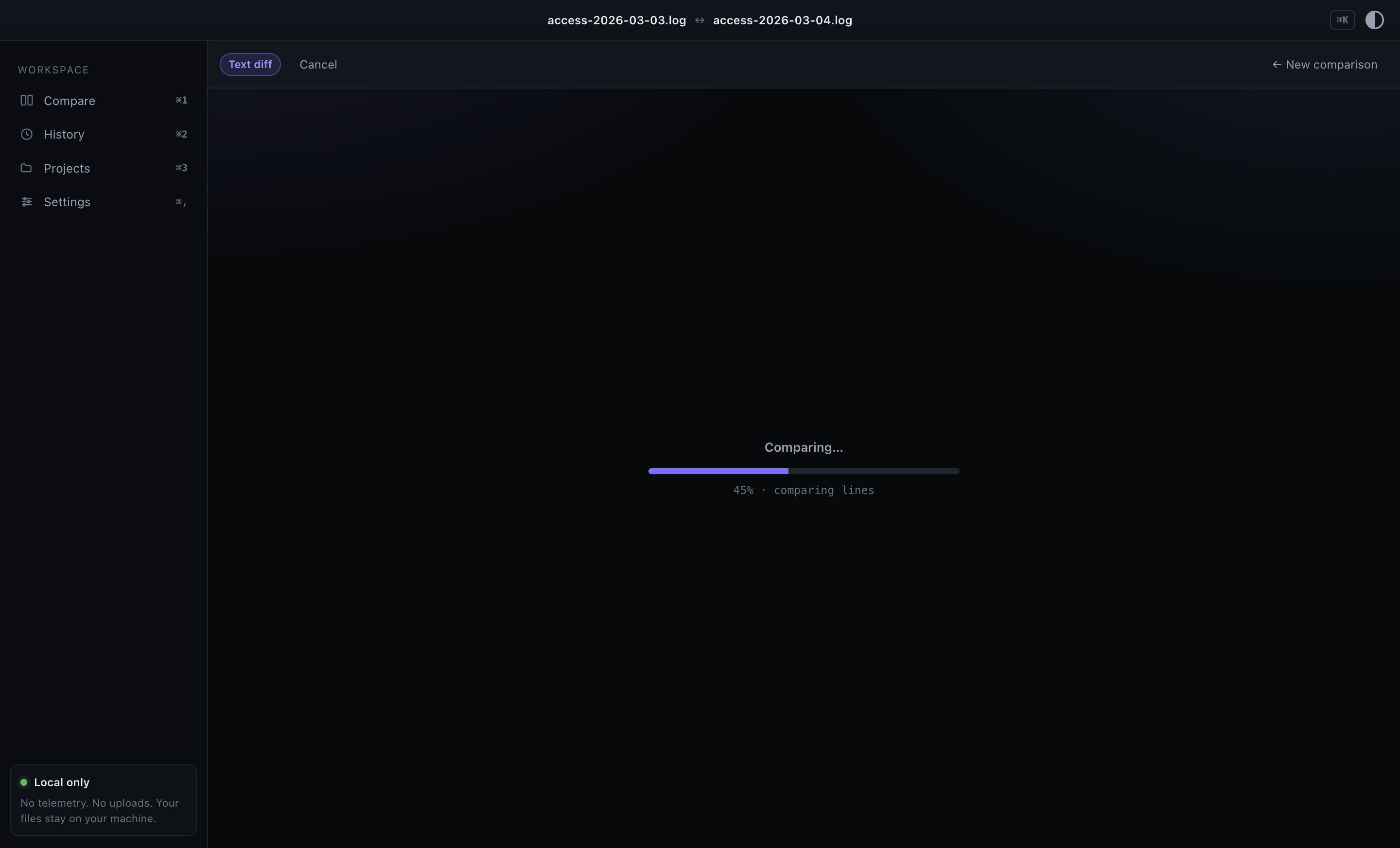

Live progress#

While a job runs you get a percentage, a stage label under the bar, and the same percentage in the status bar. The stage names come from the engine, so they describe real work:

Cancelling#

Cancel appears in the toolbar for the whole time a job is running.

Cancellation is cooperative: the host aborts a signal, and each engine checks that signal between units of work — after reading its inputs, between chunks, between bands of pixels. That is what makes a cancel instant in practice without the app having to kill anything.

The workspace then shows Comparison cancelled rather than a failure, because you did not hit a bug — you changed your mind. There is no Copy details button on a cancellation, for the same reason.

If the engine process crashes#

The third case is deliberate: a spawn loop that keeps retrying forever produces an app that looks broken and says nothing. Three attempts, then a sentence you can act on.

A failure that is not a crash gets the engine's own message. A file that was deleted between loading it and comparing it, for instance, fails with a message naming that file — and the failure panel has a Copy details button that puts the reason, both input names and the engine on your clipboard. See Reading a result.

Answers that come back immediately#

Some comparisons do not need diffing at all, and pretending otherwise wastes your time.

A large text pair asks first#

Over 10 MB on either side, the Compare button does not run the comparison — it shows the size, warns that this will take a few seconds, and waits for Compare anyway. A progress bar that sits still for eight seconds is indistinguishable from a hang, and being asked is better than guessing.

Folder and image comparisons skip the question: their cost has nothing to do with input byte size.

Limits#

Every limit here stops instead of hanging, and says which limit it hit.
