Saved web pages

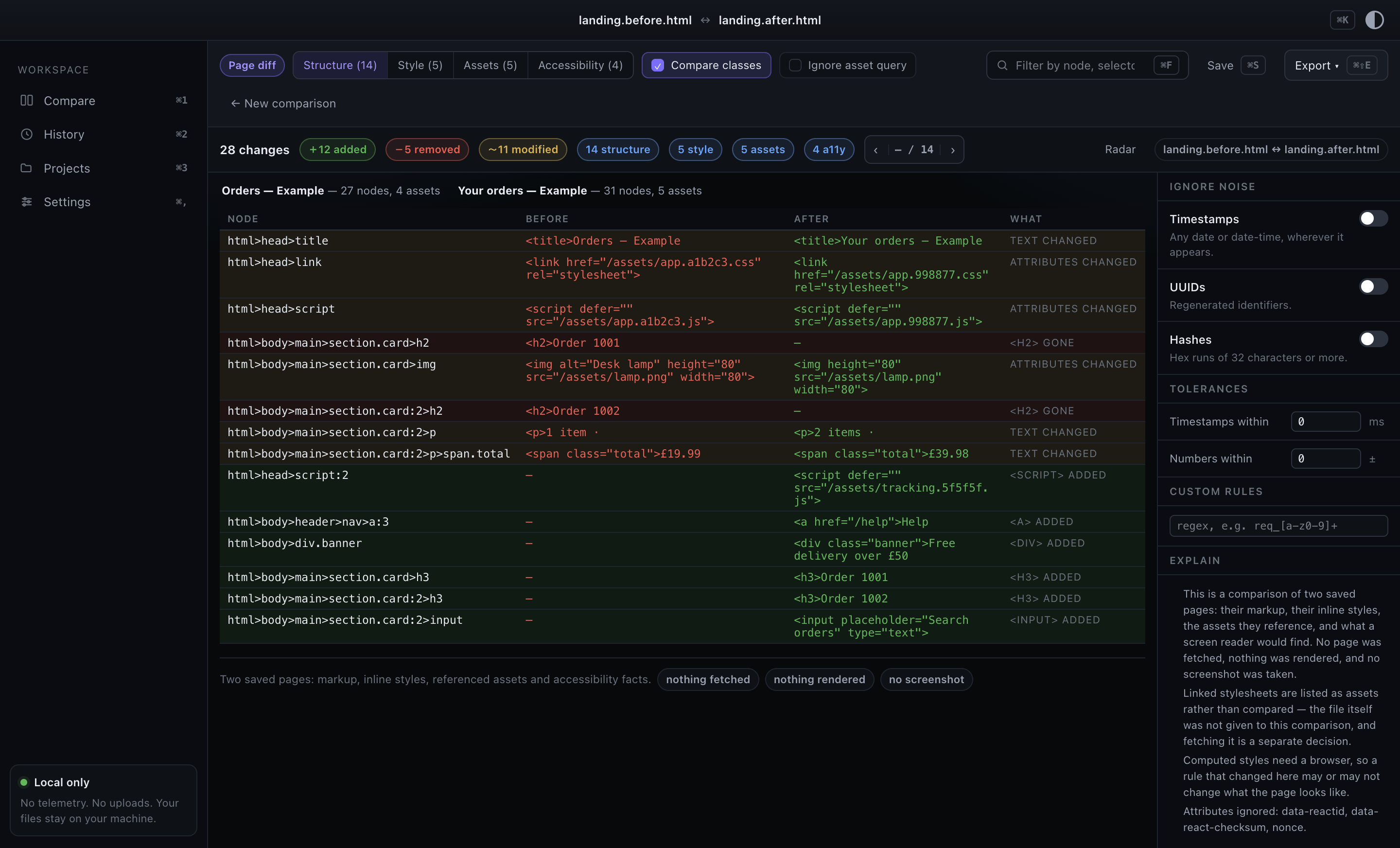

Two saved pages, in four sections — structure, style, assets and accessibility. A page differs in four unrelated ways, and one flat list of them all is what makes an HTML diff unreadable.

Click to enlarge

Four sections#

A page can differ in its markup, its styling, what it loads and what a screen reader would make of it. Those are four different questions, and rolling them into one row list is what makes an HTML diff useless. The toolbar switches between them and each tab carries its own count.

Real pages are not XML#

The parser is forgiving on purpose. Real pages have unclosed list items, minimised attributes and stray text between tags, and an XML-strict parser refuses most of the web — which is why this engine does not reuse the XML engine's reader.

<script>, <style>, <template>, <noscript> and <pre> are read as text rather than walked as a tree: a stylesheet and a script are compared as their own things, not as DOM subtrees. A removed <script> is still recorded as a change; its contents just are not diffed as markup.

The interesting part: a key that contains the tag cannot pair a retag#

Every node gets a structural key — a path down the tree, where a numeric suffix counts same-tag siblings so that inserting one element shifts only its later siblings rather than reporting the whole subtree as changed. An id wins over everything, because an id is what a page author means by "this element" and it survives being moved.

body>main>div.card
body>main>div.card>h2
body>main>div.card:2
body>#checkout-form

That key works well until an element changes tag. Consider the commonest kind of markup edit there is:

<div class="card">
<h2>Order 1001</h2>
</div>

<div class="card">
<h3>Order 1001</h3>
</div>

The tag is in the key, so body>main>div.card>h2 and body>main>div.card>h3 cannot pair at all. One edit arrived as a removal plus an addition — two rows, describing nothing that happened.

So a node carries a second field beside its key: position, which is the parent path plus the node's index among all element siblings, regardless of tag. It identifies the same slot whatever is sitting in it. A second pass over the rows looks for a removal and an addition in the same slot with different tags, and folds them into one:

One row, describing the edit that was actually made. Without the tag-free slot there were two: a removal of the h2 and an addition of the h3, neither of which mentions the other.

The same bug, one level up#

compareClasses: false had exactly this shape of defect. Classes were part of the key too, so with class comparison switched off, a div.a that became a div.b in the same position still never paired — and "ignore classes" reported the whole subtree as removed-and-added instead of ignoring anything.

The fix is the same insight, stated as a rule:

The same reasoning applies to Ignore asset query, which has to strip query strings from URL attributes in the structure section as well as in the assets section. A query string ignored in one place and reported in the other is a contradictory answer to the same question.

Attribute normalisation#

Two attributes are normalised before comparison, because two builds emitting the same thing in a different order is not a difference and reporting it trains people to ignore the section:

• class becomes a sorted, de-duplicated list.
• style keeps its declarations but sorts them.

Everything else has its whitespace collapsed. Three attributes are ignored outright by default — data-reactid, data-react-checksum and nonce — and the list is an option.

A node's text is its own text, not its descendants'. A child's text belongs to the child's row, so an edit deep in a page does not light up every ancestor.

Style: which declaration of which selector#

A text diff of two stylesheets reports that a line changed. What a reader wants is which declaration of which selector moved, so the stylesheet is parsed exactly far enough to answer that: selectors, declarations, and the at-rule a rule sits inside.

.card
.card h2
@media (min-width: 700px) › .card h2

A selector list is sorted, so a, b and b, a are one rule. A selector appearing twice in one sheet — legal and common — has its declarations merged in source order, because that is what the browser does with them; comparing the two occurrences separately would report a difference that has no effect on the page.

Note the consequence of keying on the selector: renaming a selector is a removed rule plus an added rule, not a changed one. In the sample pair, .card h2 becoming .card h3 shows up in the style section as two rows even though the structure section folds the element itself into one — the rule really did disappear and a different rule really did arrive.

Assets: a cache-busted bundle as one change#

The commonest real difference between two builds of the same site is a content hash. Reporting it as a removal plus an addition means every asset row in every comparison is noise, so unmatched assets get a second pass that pairs them on the tag plus the shape of the URL, with hash-looking runs replaced.

A run counts as a hash if it is 8 or more hexadecimal characters, or 6 or more digits. The query string is dropped before the comparison, so a ?v= cache-buster pairs too.

app.a1b2c3d4.js  →  app.99887766.js     one row: "same asset, different URL"
main.js?v=112233 →  main.js?v=445566    one row: "same asset, different URL"
vendor.a1b2c3.js →  vendor.998877.js    two rows — six hex characters is below
                                      the threshold, so the shapes differ

Assets are collected from img, script, link, source, video, audio, iframe, embed and object, across src, srcset, href and data. Nothing is ever requested.

Accessibility: problems, not only differences#

This section reports standing problems as well as changes. That is deliberate: a comparison is where someone is already looking at the markup, and a section that only reported differences in accessibility would stay silent on a page that was inaccessible in both versions.

A control counts as labelled by a <label for="…">, by sitting inside a <label>, by aria-label or aria-labelledby, or by being a submit button. Hidden inputs are exempt. An alt="" is a decision — an author saying the image is decorative — so only a missing alt attribute is reported, never an empty one.

The sample pair's page loses the alt on its product image and gains an unlabelled search input, so both of those checks fire, alongside a changed heading outline (two h2s became h3s) and a changed title.

What it does not do#

Limits#

In the app#

Both toggles re-run the comparison rather than filtering the view, so the counts in the summary strip always describe the rows on screen. The page headers above the table name each side's title, node count and asset count.
