Dependencies

Which packages moved, and how far. Not that a string changed from one range to another — the question you actually asked, with a filter for the three answers worth reviewing.

Click to enlarge

Detection is by filename, not extension#

package.json, package-lock.json, npm-shrinkwrap.json, pnpm-lock.yaml and yarn.lock are all .json or .yaml as far as an extension map is concerned. So the basename is checked first, before the extension map gets a look.

Without that, two manifests got a structural JSON tree — which answers the wrong question. It tells you a string changed from ^4.17.20 to ^4.18.0; what you wanted was "lodash, a minor bump". The engine dropdown still offers JSON for the times you really did want the tree.

What each kind of pair can tell you#

The engine accepts either two manifests or two lockfiles, and does what each allows.

A manifest pair says so outright rather than leaving you to notice:

These are declared ranges, not installed versions. Compare the two lockfiles to see resolved versions, transitive packages and licences.

How far a version moved#

Every changed row carries a badge saying how far, and a version that moved down is marked as the rollback it is.

range exists because pinning a range is a real and deliberate change, and calling it "no change" would hide the intent. A release outranks any prerelease of the same numbers, so 1.2.3-beta.1 → 1.2.3 is a prerelease move upwards.

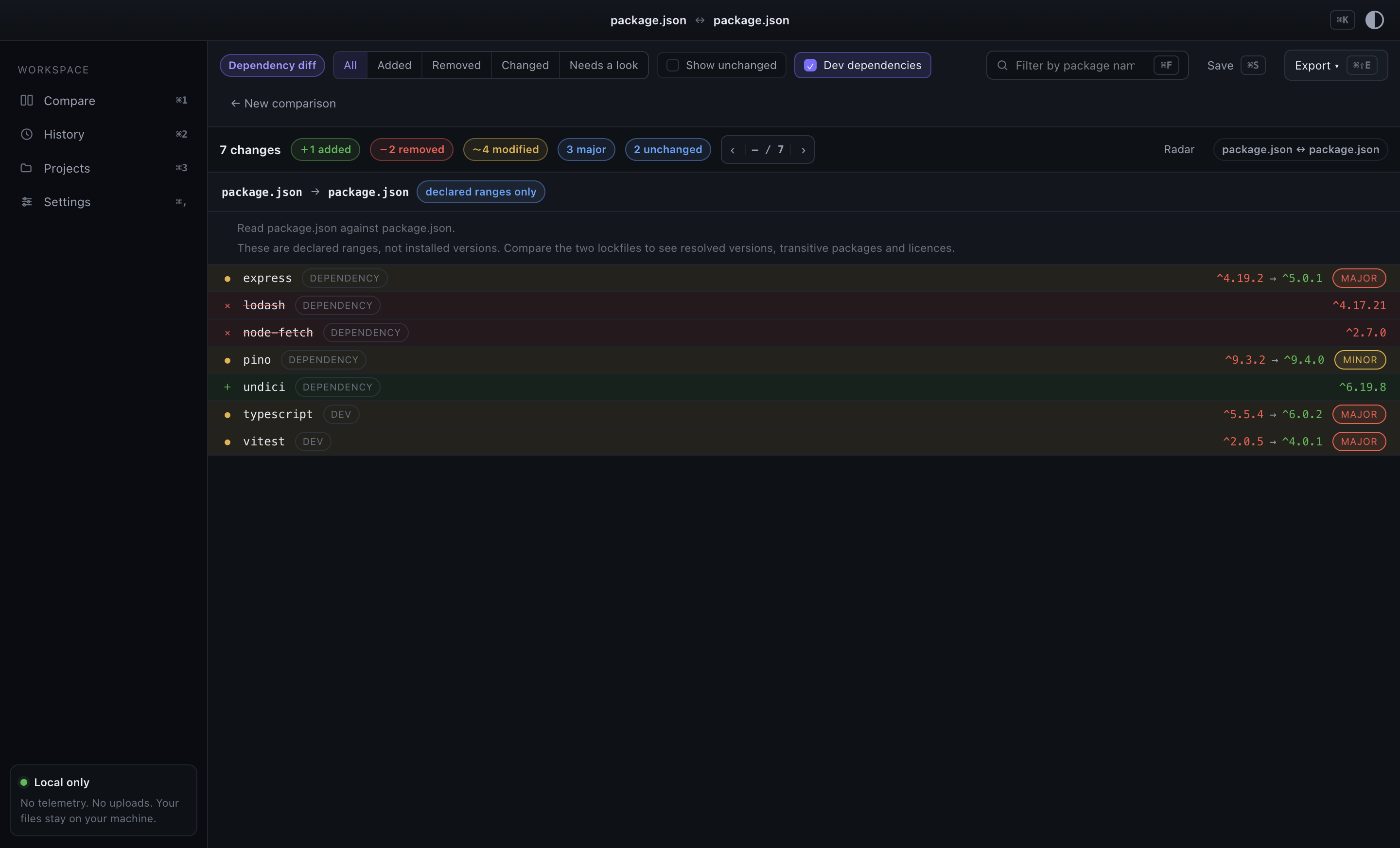

Reading the list#

Rows are sorted direct dependencies first, then by kind — dependency, dev, peer, optional — then by name, with transitive packages after all of them. Each row shows the package, its kind, the before and after versions, its bump badge, and a licence pair when the licence changed.

The toolbar has one filter worth knowing about by name:

Two more toggles re-run the engine, because what counts as a dependency is part of the comparison rather than of the presentation: Dev dependencies, and Transitive — the second offered only when both sides actually resolved anything. Excluding transitive packages from the list still counts them, and the notes say so.

The toolbar box filters by package name. The notes are rendered in the view itself rather than tucked away, because what a pair cannot show is as important as what it does.

Three parsing facts the engine is precise about#

npm lockfile paths need the last node_modules/ segment. Keys under packages are paths, and node_modules/a/node_modules/b is package b nested under a — everything before the last segment is the nesting that got it there. The root project is the empty key, which is where its direct dependencies live, so a lockfile alone still knows what was asked for. Where a resolved version exists it is preferred over the declared range, because it is what is actually installed.

pnpm keys on the last @. A key like @scope/name@1.2.3 has two — and the first one is the scope. The older @scope/name/1.2.3 shape is read too. pnpm records no licences at all, which is why the notes say a licence change cannot be reported for such a pair rather than reporting none.

A classic yarn.lock cannot separate direct from transitive. The format simply does not record the distinction, so every resolved package is listed as direct — and the result says exactly that instead of glossing over it:

A classic yarn.lock does not separate direct from transitive dependencies — every resolved package is listed as direct.

The sample pairs#

07-dependencies/ has both shapes, each in before/ and after/ subfolders so that both sides can keep their real filename — which is what detection reads.

The manifest pair drops lodash and node-fetch, adds undici, and moves express, pino, TypeScript and vitest. It comes back as 1 added, 2 removed, 4 modified, with 3 major bumps and 2 packages unchanged, plus the declared-ranges note.

The lockfile pair answers more: 1 added, 1 removed, 4 modified, packages 5 → 5, 3 major. It includes debug, which nobody declared — it is nested under express in the lockfile, and it moved from 2.6.9 to 4.3.6 when express did.

twinscope 07-dependencies/manifest/before/package.json \
        07-dependencies/manifest/after/package.json

twinscope 07-dependencies/lockfile/before/package-lock.json \
07-dependencies/lockfile/after/package-lock.json

The Radar axis this engine exists to feed#

The Diff Radar's Deps axis has no data at all without this engine, which is why it was built before the Radar shipped. A dependency comparison scores four or five axes: Deps for the share of the set that moved, Structure for packages appearing and vanishing, Content for versions changing in place, and — only when both sides are lockfiles — Metadata for licence changes and Weight for the change in transitive package count.

For a manifest pair those last two are drawn hollow rather than at zero, because a manifest does not know them. "We could not measure this" and "nothing changed here" are different statements, and the chart says which.
