Git refs

Two branches, a tag, a commit id, or the working tree. One row per changed file with git's own counts, and any file pair one double-click away — using the git already on your machine.

Click to enlarge

Choosing a repository and two refs#

The Git card on the Compare screen opens a folder picker, then resolves the repository root — which may be above the folder you picked — and reads its branches, tags and thirty most recent commits.

Both ref fields offer the same list, in this order: the working tree, then branches, then tags, then recent commits as shortSha subject. They are text inputs with that list attached rather than dropdowns, because a commit id is a legitimate answer and validation happens anyway.

The panel opens on the question most people came with — HEAD against the working tree when the tree is dirty — and says what it found rather than guessing:

Both refs must come from the same repository. A ref in one checkout against a ref in another is a folder comparison wearing a hat, and git cannot answer it in one command anyway.

What comes back#

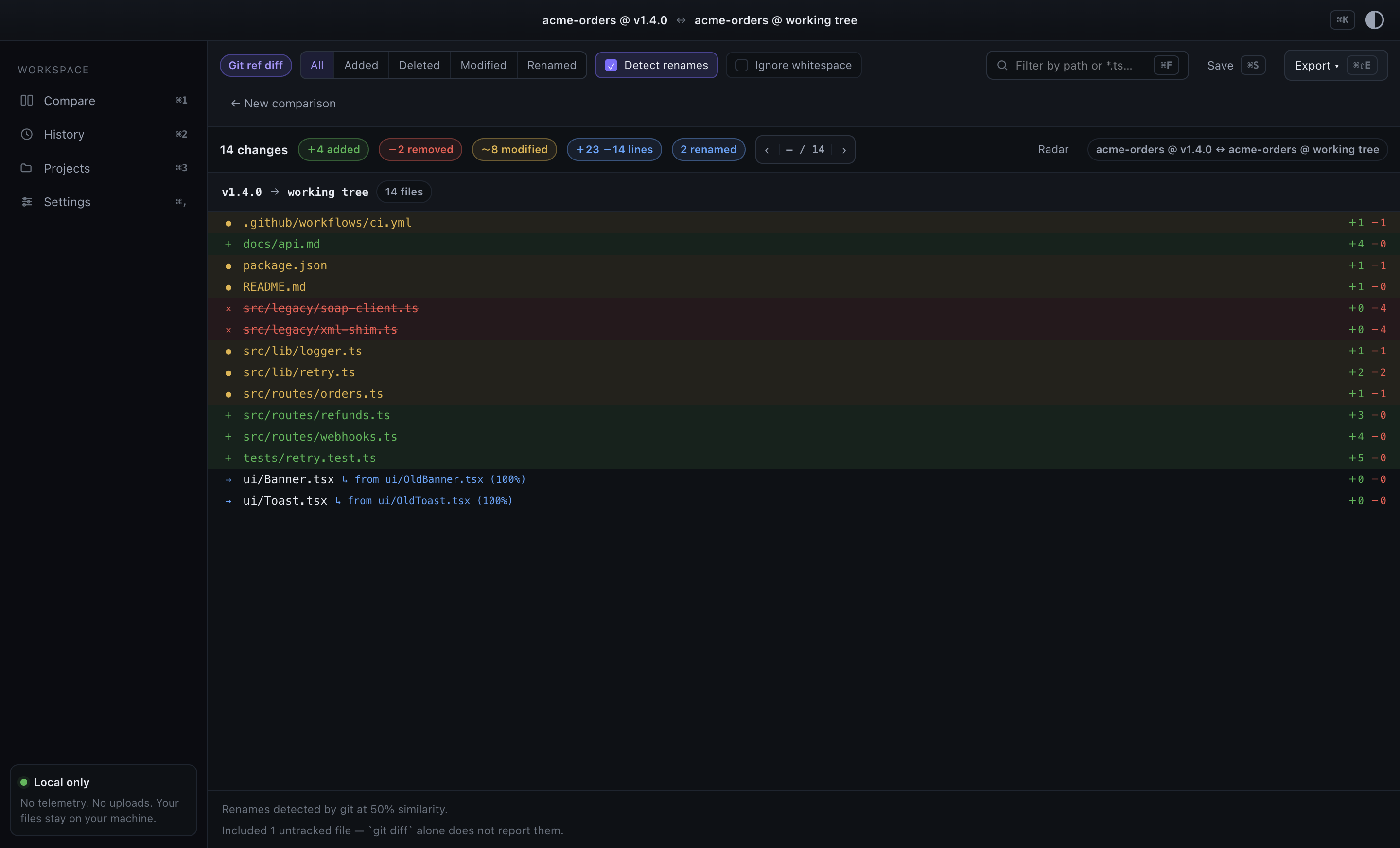

One row per changed file — not two aligned columns like the folder view. A git diff has one path per change, even a rename, where the old name is a note on the new row rather than a stripe of its own; aligning two columns would mean inventing gaps git never reported.

Each row carries git's own ＋added －removed counts, and a binary file is marked binary rather than given zeroes — git reports no line counts for one, and pretending otherwise would be inventing them. Rows are sorted by path so the list is stable between runs; git's own order follows its tree walk.

Filters are All, Added, Deleted, Modified and Renamed, and the toolbar box filters by path: *.ts behaves like a glob against the basename, anything without a wildcard is a case-insensitive substring of the whole path.

Two toggles, and both re-run git#

• Detect renames — git's own detection, at 50% similarity by default. Turning it off means a moved file reads as one addition and one removal, and the notes say so.
• Ignore whitespace — whitespace-only changes stop counting, and some files may then be absent from the list entirely. That is in the notes too.

Neither filters the view. git decides what changed, so the counts have to come back from git.

Drill in to any blob pair#

Double-click a row — or select it and press ⏎ — to open that one file as its own text comparison. Neither side of a ref-to-ref comparison exists on disk, so this cannot go through the ordinary file read: it fetches the two blobs with git show and hands the text straight over.

A blob that does not exist at a ref comes back as nothing, which is exactly what an addition or a deletion looks like, and becomes the empty string — so the whole file reads as added or removed. For a rename, the before side is fetched at its old path. A binary row explains why it cannot be opened instead of opening something unreadable.

git diff has no ref name for the working tree#

It is expressed by omitting an argument: git diff <ref> compares that ref against the files on disk. So the working tree is a sentinel here, filtered out of the argv rather than passed as a name.

Which leaves one case with no command shape at all: the working tree as the before side. That is done by asking git the other way round and inverting the answer — every A becomes a D and every D an A, and the ＋ and － counts swap sides. The sample repository shows both readings of the same two things:

git diff never reports untracked files#

By design: they are not in the index, so there is nothing to diff them against. For a tool whose entire question is "what is different", that made a brand-new file silently missing from "what have I changed" — the one case where a wrong answer looks exactly like a right one.

So whenever the working tree is involved, a second command runs: git ls-files -z --others --exclude-standard. The --exclude-standard is what keeps node_modules and every other ignored path out; without it a working-tree comparison in a JavaScript repository returns tens of thousands of additions.

Line counts for those files come from the filesystem, because git has no record of them — and the notes say the files were folded in:

Included 1 untracked file — git diff alone does not report them.

A ref is an argv element, so the risk is argument injection#

Refs never reach a shell — execFile, no shell, no quoting rules to get wrong. What remains is argument injection, and that is a different problem: git diff --upload-pack=/bin/sh is a perfectly valid command line, and A..B turns two refs into a range.

So refs are an allowlist, not an escape:

HEAD~3, v1.2.0, refs/heads/feature/x, origin/main and a full SHA all pass. @{upstream} does not, deliberately: nothing in the interface offers it, and {} would widen the set for one convenience.

The guard is enforced twice on the desktop path — once at the process boundary and again inside the engine — which is also what gives the command line the same protection without re-implementing it.

git show <ref>:<path> interprets its path argument too, since a pathspec is not a filesystem path. So that argument is refused outright if it is absolute, starts with -, contains a NUL, or has a .. segment, and is prefixed ./ so it cannot be read as anything but a path.

Process hygiene that is load-bearing#

The sample repository#

15-git/orders-repo/ is opened with the folder picker rather than dropped. It has two branches (main and feature/refunds), a v2.4.1 tag, an uncommitted edit to README.md, and an untracked notes.txt — the file plain git diff never mentions.

main against feature/refunds comes back as 1 added, 2 modified, ＋21 －5.

twinscope --repo 15-git/orders-repo main feature/refunds

Limits#

The Diff Radar scores this engine on files, not lines: git reports how many lines changed but never how many a file has, so there is no denominator for a line ratio — and inventing one is exactly what "only ship a score that is honest" rules out. Renames feed the Metadata axis, as they do for folders.
