Environment and config
A table of keys — what changed, what arrived, what left. Credentials are masked before the row model exists, so the mask travels into the export and the clipboard rather than living in the view. Kubernetes objects pair by identity, so reordering a file is not a change.
Four shapes, one table#
.env files, Kubernetes manifests and Terraform all reduce to the same thing — key → value — so one row model, one masking pass and one view serve all of them. What differs is only how the keys are arrived at.
| Shape | Recognised by | Keys look like |
|---|---|---|
.env | the name: .env, .env.*, or anything ending .env | DATABASE_URL |
| Kubernetes | shape — an apiVersion: line and a kind: line | Deployment/production/api.spec.replicas |
| Terraform plan | shape — a "terraform_version" or "planned_values" key | aws_db_instance.main.engine_version |
| Terraform vars | the name: .tfvars or .tfvars.json | instance_count |
Shape detection reads a 4 KB head, because the text it is given may be a truncated sniff of a large file rather than the whole thing. Both sides have to be the same shape; an .env against a manifest is refused by name, with Compare as text offered as a button.
Secret masking, and where it happens#
Two consequences follow from that, and both are worth stating plainly.
"Show secrets" re-runs the comparison. It is not a display toggle, because there is nothing in the view to toggle — the real value is not there to reveal. Turning it on asks the engine for a fresh result with masking off.
It is never persisted. The setting applies to one comparison and one comparison only. A remembered "show secrets" is a credential in the next screenshot. While it is on, a banner above the table says so, and says it applies to anything you export or copy in the meantime.
What counts as a secret#
Two kinds of rule, because one is not enough. A key like AWS_SECRET_ACCESS_KEY announces itself; DATABASE_URL does not, and carries a password inside it.
| Rule | Fires on | Reported as |
|---|---|---|
| by key name | secret, token, password, passwd, pwd, api_key, credential, auth, private_key, access_key, dsn, salt, signature | the name says secret |
| URL password | postgres://user:pw@host/db — a password in the authority | a password inside a URL |
| JWT | three base64url runs separated by dots | a JWT |
| PEM | a BEGIN … PRIVATE KEY or BEGIN … CERTIFICATE block | a PEM block |
| entropy | 24+ characters, no /, mixing at least three character classes | a long generated-looking value |
Entropy is checked last, deliberately: it is the loosest rule, and a long filesystem path or a base64 logo would otherwise be reported as a credential. Each masked row carries the reason, because a masked value the reader cannot account for looks like a bug in the diff.
What the mask looks like#
DATABASE_URL ••••••• k3f9x2a (61 chars) ••••••• q8m1zzv (65 chars) changedThe fingerprint is a short digest; the character count is shown because a secret that changed length was regenerated rather than rotated to a same-format one, and the length of a credential is not the credential.
The digest is not cryptographic and does not claim to be. It exists so that two equal secrets look equal on screen — which is the property the comparison actually needs. It is salted per comparison, so a fingerprint cannot be looked up against a table of common passwords, and truncated so it cannot be brute-forced back into a value.
Masked values still compare#
This is the point of using a stable fingerprint rather than a fixed row of dots. Two secrets that differ are reported as differing — you learn that a credential changed without being shown either version of it.
Same length, different fingerprint: the key was rotated to another key of the same format, and that is exactly what you needed to know.
The sample pair#

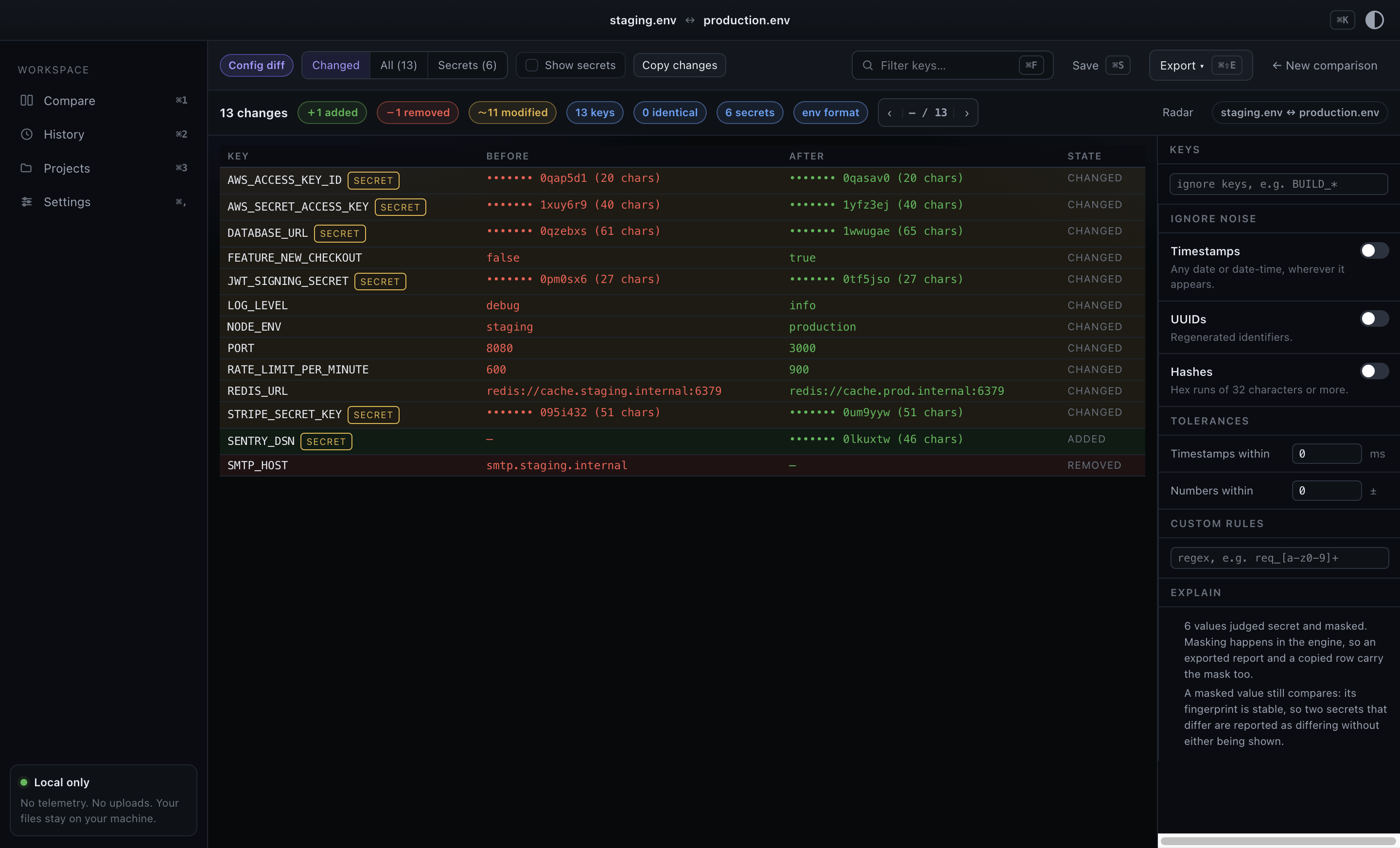

09-config/env/ compares a staging environment against production: 13 keys, 11 changed, 1 added, 1 removed, 6 masked. The six are worth reading as a set, because they are found by four different rules — STRIPE_SECRET_KEY, JWT_SIGNING_SECRET, AWS_ACCESS_KEY_ID and AWS_SECRET_ACCESS_KEY by their names, SENTRY_DSN by the dsn in its name, and DATABASE_URL by the password inside its value, which no rule about key names would ever have caught.
REDIS_URL sits right beside it and is not masked: it has no password in it, and the engine does not mask a URL for being a URL.
Empty is not the same as missing#
KEY= next to no KEY at all is its own state, because that difference is the one that causes outages. A flat "changed" hides it, so there are six row states rather than four:
| State | Meaning |
|---|---|
| changed | Both sides present, values differ |
| emptied | Had a value before, present but empty now |
| filled | Present but empty before, has a value now |
| added | Only on the after side |
| removed | Only on the before side |
| same | Present on both, equal |
Rows sort by state — changed, emptied, filled, added, removed, then unchanged last. Two hundred identical keys above the one that moved is a diff nobody reads to the end.
Kubernetes pairs by object identity#
Two clusters, or two kustomize build runs, never emit their objects in the same order. So a document's keys are prefixed with kind/namespace/name rather than with its position in the file:
Deployment/production/orders-api.spec.replicas
Service/production/orders-api.spec.ports[0].port
ConfigMap/production/orders-flags.data.NEW_CHECKOUTComparing document 3 against document 3 would compare a Deployment against a Service and report the whole file as rewritten. Keyed this way, reordering the documents is not a change — the sample's AFTER file is deliberately in a different order (ConfigMap first, Deployment second) and the comparison is unbothered by it. It reports 22 keys, 10 identical, 8 changed and 4 added — the additions being a HorizontalPodAutoscaler that only the after side has.
Secret values are decoded, then re-masked#
A Kubernetes Secret holds its values as base64. Two Secrets differing only in padding hold the same secret, and the reader needs to know that rather than that two base64 blobs differ — so data and stringData values are decoded before comparison, and then masking hides them again. Rows that went through this carry a note, and the result says it happened.
A decoded value containing control bytes is left as base64 instead: that is a TLS key, not a string, and printing its length is more honest than printing a decode of it.
Ignoring keys#
ignoreKeys takes globs against the key — *_AT, BUILD_* — and matching keys leave the comparison entirely rather than being reported as unchanged. Whatever you ignore is listed in the notes, so suppression is never invisible. Set it per project in project presets, or reach it from the command line.
The shared normalisation rules apply to values too, so a regenerated id inside a value is not a change; suppressions are counted and stated.
In the app#
| Control | What it does |
|---|---|
| Show | Changed · All (with a count) · Secrets (with a count) |
| Show secrets | Re-runs the engine with masking off. Never remembered |
| Copy changes | Every non-identical row to the clipboard — masked, because it copies the rows the engine produced |
A note on writing escapes#
Two literal control characters once reached this engine's source as characters rather than as escape sequences: a placeholder used by an early glob compiler, and a regex class of control bytes. Both are invisible in every editor and in every diff, and only one of the two was caught by a lint rule.
The glob compiler now splits on * and escapes the parts, and the control-byte check is a character-code loop rather than a regex. Both are more readable than what they replaced, which is the argument for the rule the codebase now keeps: write escapes, or write a loop — never smuggle a character into source as a character.
