XML

Attributes get their own rows, a second repeated child is an addition rather than a change of type, and child order counts — because in XML it is part of the document.

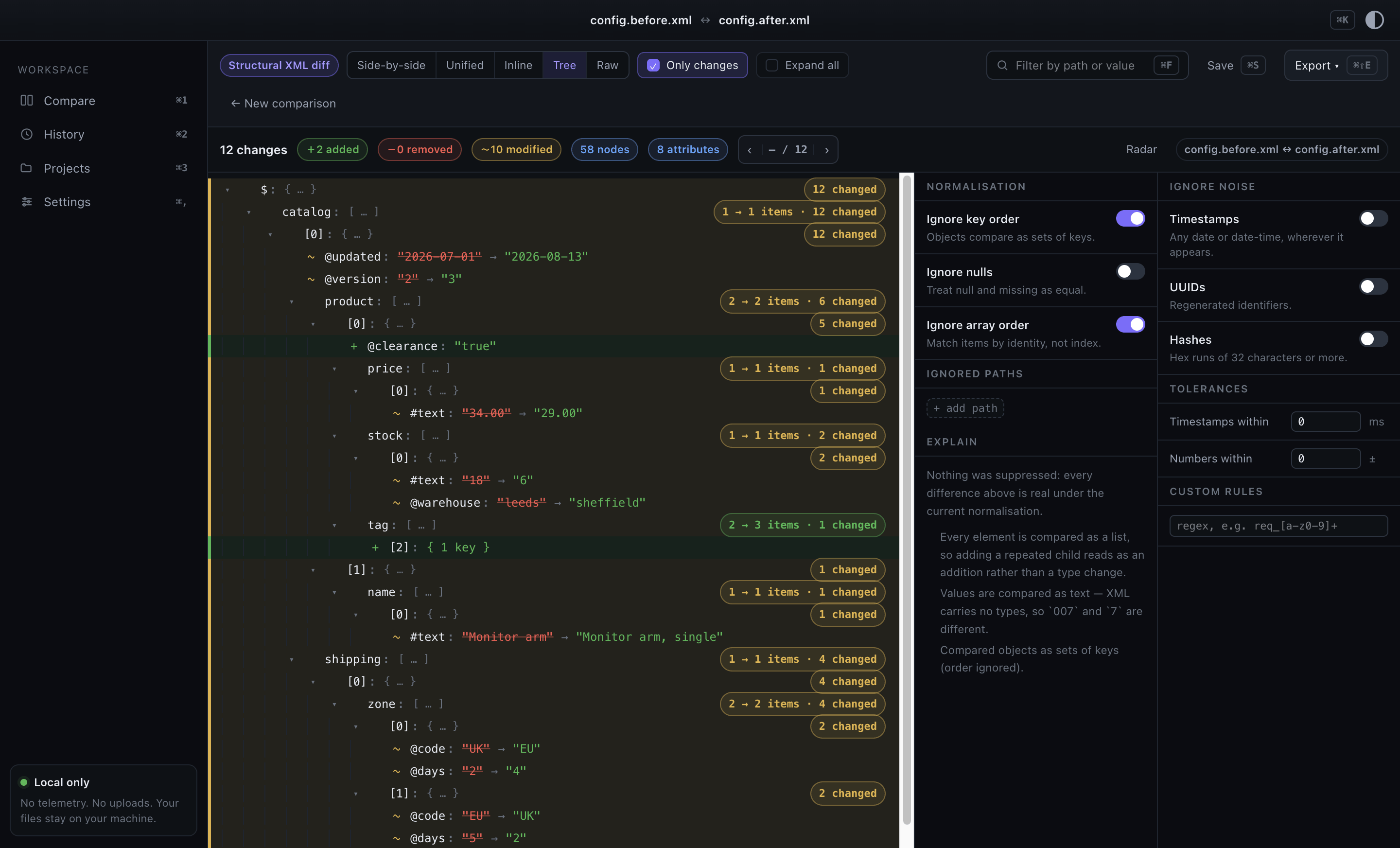

Click to enlarge

What claims a pair#

.xml, .xsd, .xsl, .xslt, .svg, .rss, .atom and .plist. Before this engine existed these were compared as code — a line diff, which is exactly the comparison a structural engine exists to avoid.

Like YAML, it is a careful parse in front of the JSON structural core, so every row is addressed by a path and the five view modes, the ignored-path globs, the filter and Copy path all work here on the same terms.

Attributes and text are separate rows#

An element's attributes arrive as keys prefixed @, and its text content as #text. They land beside each other in one object, which is what lets the tree report an attribute change and a text change as two rows rather than one opaque "the element changed".

<product sku="TS-100" currency="GBP">
<name>Desk lamp</name>
<price>34.00</price>
<stock warehouse="leeds">18</stock>
</product>

That parses to @sku, @currency, and a name, price and stock each holding a #text — plus stock's own @warehouse. The summary strip carries an attributes count alongside the usual three, so the first question a reader has — "did the structure change, or just an attribute?" — is answered before they scroll.

The <?xml …?> declaration arrives as a key called ?xml and is compared like anything else. Comments are not compared, and the notes say so when a document contains any.

Child order is a change here, and is not in a JSON array#

This is the one place the XML engine's defaults differ from the JSON engine's. JSON arrays are usually sets in practice — a reordered roles list rarely means anything — so the JSON engine matches array items by identity by default. An XML document is the opposite: <step> elements in a different order describe a different process.

So Ignore array order is off for XML. The same control is in the rail, and turning it on makes child order irrelevant for the comparison you are looking at.

The sample pair swaps two children to show what that costs:

<!-- before -->            <!-- after -->
<shipping>                 <shipping>
<zone code="UK" days="2"/> <zone code="EU" days="4"/>
<zone code="EU" days="5"/> <zone code="UK" days="2"/>
</shipping>                </shipping>

Compared in order, that is four changed rows: each zone in turn has a different code and a different days from the element now sitting in its position. Turn Ignore array order on and the UK zone matches wherever it moved to, leaving the EU zone's changed days as the single edit it is.

Both readings are defensible for a shipping table, and neither is defensible for a list of pipeline steps — which is why the default is the strict one and the control is one click away.

Two parser defaults that had to be forced#

Both are the same bug at different depths, and both would have made the engine wrong about the commonest edits anyone makes to XML.

isArray — adding the second repeated child#

By default a single <item> parses to an object and two parse to an array. So adding the second child would report a type change — object became array — rather than one addition. Every element is therefore parsed as a list, whether there is one of it or ten.

<!-- before -->        <!-- after -->
<product>              <product>
<tag>lighting</tag>    <tag>lighting</tag>
<tag>office</tag>      <tag>office</tag>
                       <tag>sale</tag>
</product>             </product>

alwaysCreateTextNode — adding an attribute to a leaf#

The same trap one level down. By default <id>7</id> parses to the bare string "7" while <id x="1">7</id> parses to an object — so adding an attribute to a leaf would report a type change too. With every element an object, only its contents differ.

Values are compared as text#

parseTagValue and parseAttributeValue are both off. XML has no types without a schema, and the default coercion reads <id>007</id> as the number 7 — which loses information and, worse, equates <v>1.0</v> with <v>1</v>.

So 007 and 7 are different values here, and the notes say so on every comparison. Whitespace around a value is trimmed, because indentation is presentation in XML and <a>x</a> is the same document however it was wrapped.

Namespace prefixes are compared as written, not resolved: two documents that mean the same thing through different prefixes will report differences. That is also in the notes when a document uses namespaces.

When the XML does not parse#

Validation is a separate step from parsing, deliberately. The parser is forgiving and will happily return something for a document with mismatched tags; the validator refuses it and reports the line and column — which is what makes the error worth reading.

An empty file is refused by name rather than as a parse error. Either way the error offers Compare as text as a button, and one click brings the same two files back as a text diff.

The sample pair#

05-xml/ is a two-product catalogue. The after file bumps the catalogue version and date, drops a price, moves stock to another warehouse, renames a product, adds a clearance attribute and a third tag, and swaps the two shipping zones.

It comes back as 2 added, 10 modified across 58 nodes, with 8 of the changed rows being attributes — four of them the swapped zones.

twinscope 05-xml/before.xml 05-xml/after.xml

The shared normalisation rules apply here as they do to text, JSON, YAML and CSV, and the Diff Radar plots Structure, Content and Metadata — the last of those being type changes. The other three axes are drawn hollow rather than at zero.
